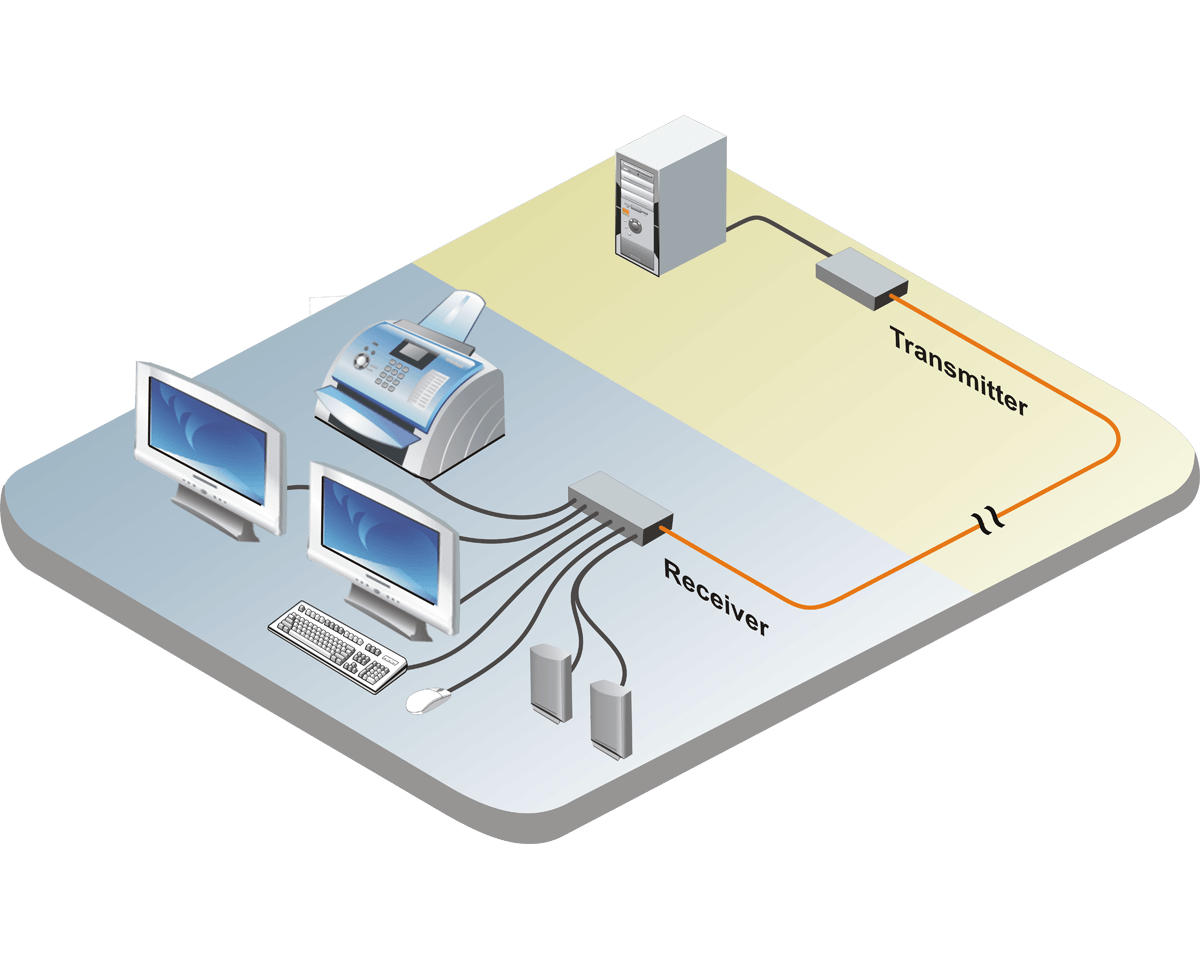

Orion XTender的模塊化設計允許用戶擴展遠程計算機的桌面控制，或?qū)⑵渲匦掳仓迷谶h(yuǎn)離桌面，控制室或危險環境的安全和管理空間中。
無論您需要通過USB或PS2鍵盤，鼠標還是觸摸屏控制的單頭，雙頭或四頭視頻顯示器，這款模塊化和功能豐富的系列都可以根據您的需求進行配置。
常見的應用包括控制室，廣播工作室，外部廣播車，音樂會和劇院場地，AV分發，醫學成像和其他工業/軍事應用。
將它們指向點或?qū)⑺鼈冞B接到Orion-X或Orion-XC切換器。現在，您可以將視頻，音頻和USB控制路由到所需的任何目的地。您的源和目標視頻格式不必相同。

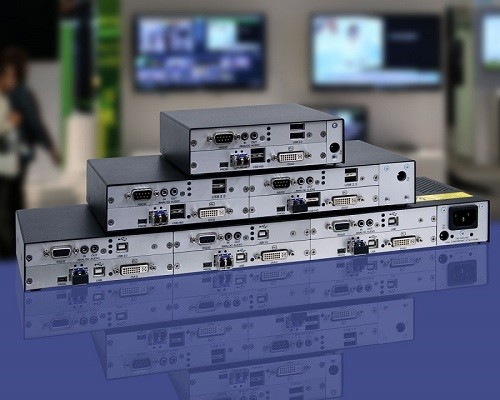

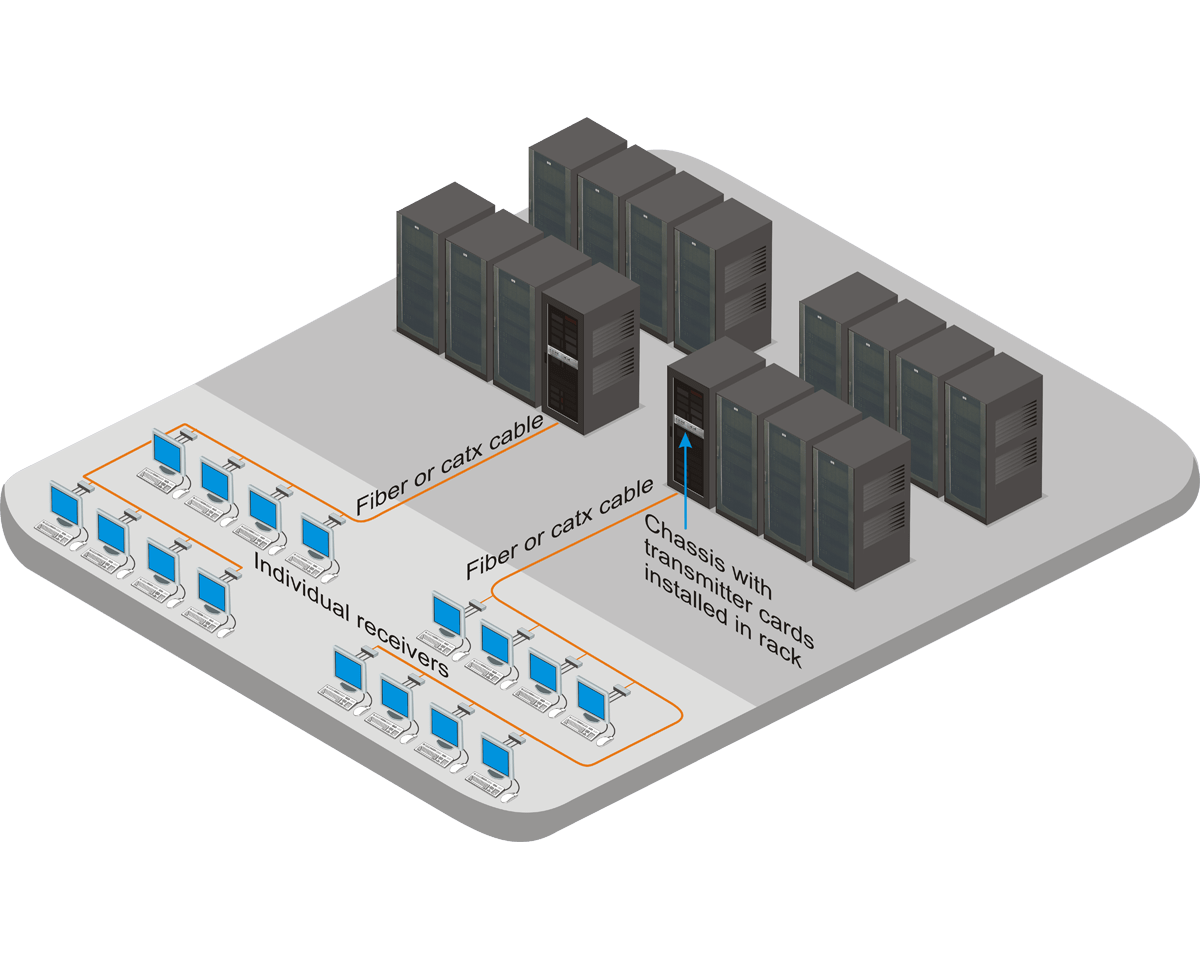

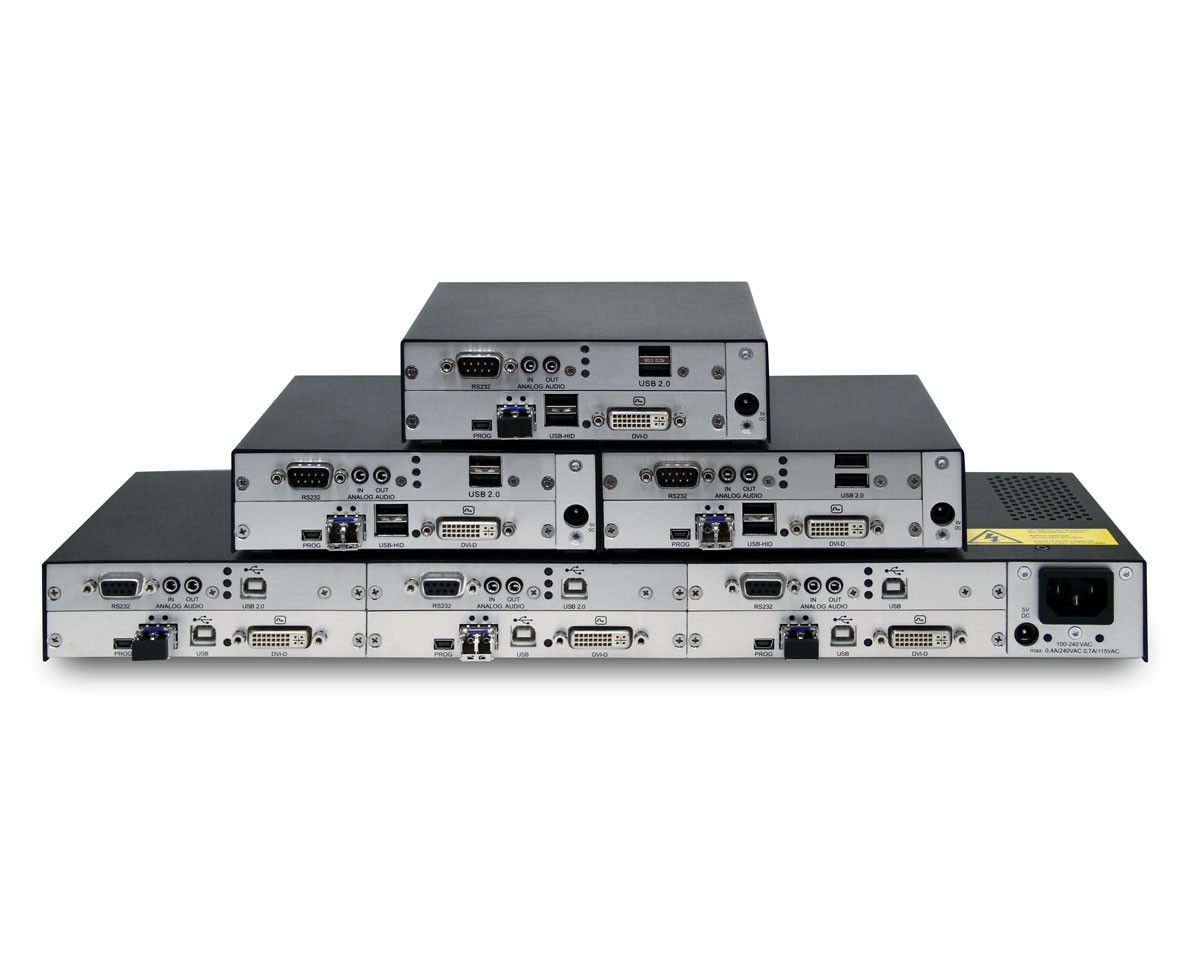

多種機箱尺寸和冗余電源使Orion XT成為一款多功能產品。您可以使用較大的尺寸，其中多個來源位于同一位置，并使用較小的單位在用戶附近的設施周圍散布。

連接狀態LED位于前面板上，用于指示設備的運行狀態。機箱均可安裝在機架上，所有連接器均位于機箱的同一側，方便操作。

擴展您的KVM工作站和計算機

使用CATx電纜，最長可達460英尺（140米）
使用多模光纖，最長可達3,300英尺（1千米）
使用單模光纖，最長可達33,000英尺（10公里）

多個機箱尺寸可滿足大型和小型系統配置
使用USB鍵盤，鼠標，觸摸屏和大多數HID設備或使用選件卡添加打印機，掃描儀，硬盤驅動器，記憶棒，音頻設備等
支持的視頻接口：

單鏈路 DVI-D 視頻高達 1920×1200@60Hz

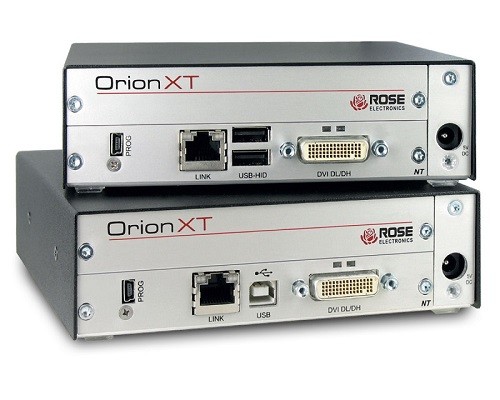

雙鏈路 DVI-D 視頻高達 4K@30Hz
雙頭 DVI 視頻使用單根線纜高達1920×1200@60Hz
DVI-I (VGA) 視頻高達 1920×1200@60Hz 與可選縮放比

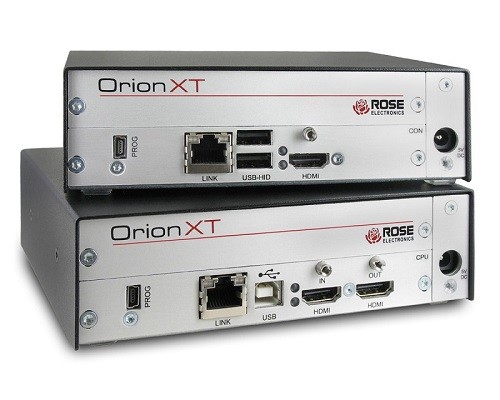

HDMI 視頻高達 4K@60Hz

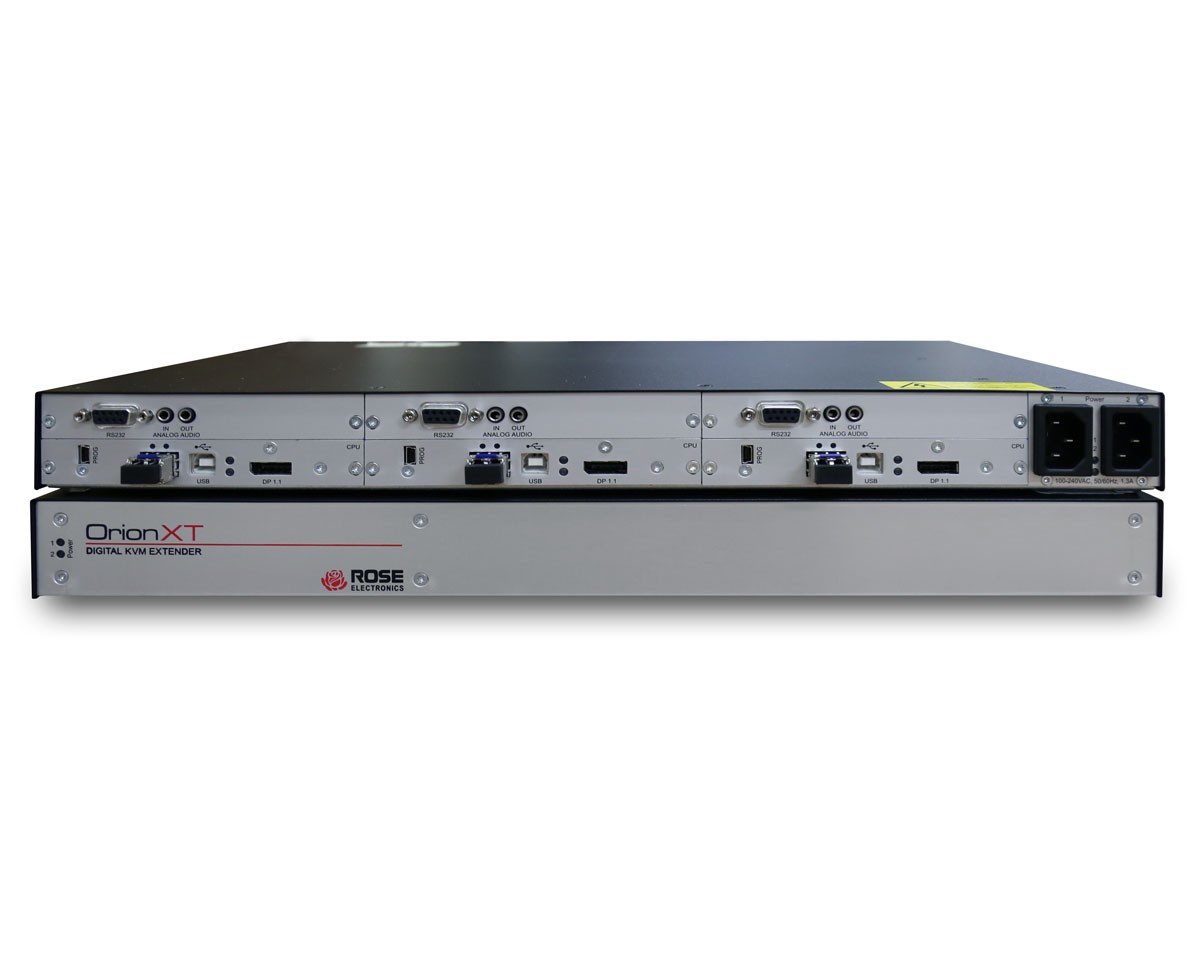

DisplayPort 視頻高達 4K@60Hz

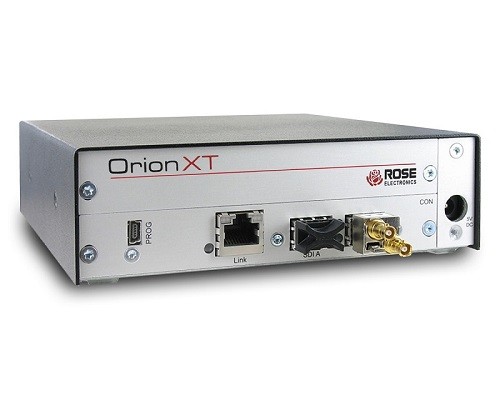

SDI 視頻高達 1920×1080p

其他接口

USB-HID, USB 2.0, 和 USB 3.0 設備
PS2 鍵盤和鼠標
串口 RS-232 和 RS-422, 高達 115.2K 波特率
模擬立體聲麥克風和揚聲器
數字音頻（Mini-XLR，Coaxial，Optical）

其他:

冗余電源
冗余鏈路

Dimensions (W x D x H)	2x: 5.7" x 5.7" x 1.6" (146 x 146 x 41 mm) (1U) 4x: 11.6" x 5.7" x 1.6" (295 x 146 x 41 mm) (1U) 6x: 18.4" x 5.7" x 1.6" (466 x 146 x 41 mm) (1U)
Weight	2x: 0.9 lb (0.4 kg) 4x: 2.0 lb (0.9 kg) 6x: 3.1 lb (1.4 kg)
Power	100-240 VAC 50-60Hz Power at chassis: 2x: External adapter, +5V, 3A 2x: Internal power supply, AC line power 4x: External adapter, +5V, 5A 6x: Internal power supply, AC line power Optional redundant power supply Maximum power required by cards: Base card DVI + HID: 4W Base card DVI/VGA+ HID 4.5W Base card HDMI + HID: 4W Analog Audio / Serial: 1.5W Serial(RS422): .75W Digital Audio: 1.5W USB-HID: 1.5W PS/2: 3.25W USB 2.0 embedded: 5.5W USB 2.0: 12.5W Maximum power of chassis: 2x: 15W 4x: 25W 6x: 60W
Resolution	DVI single-link video: 1920 x 1200/2048 x 1152 DVI dual-link video: 2560 x 2048 VGA video: 1920 x 1200 HDMI video: 1920 x 1200
Distance	CATx: 460? (140m) Multi-mode fiber: (62.5): 650 (200m) Multi-mode fiber: (50): 1,300 (400m) Multi-mode fiber: (50) OM3: 3,300 (1Km) Single-mode fiber: (9): 33,000 (10Km)

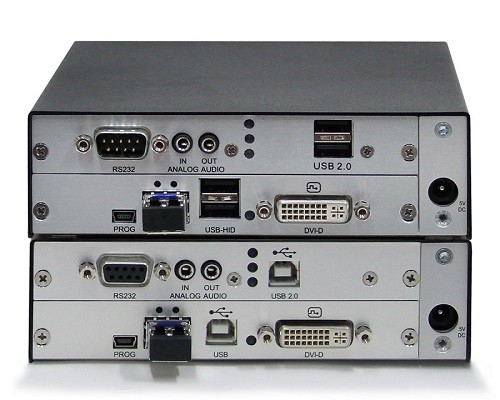

Connectors	Transmitter: DVI video: DVI female VGA video: DVI-I female HDMI: HDMI female USB HID keyboard/mouse: USB Type B PS/2 keyboard/mouse: Two PS/2 mini-din6F PS/2 dual access keyboard/mouse: Two PS/2 mini-din6F USB 2.0 host: USB Type B CATx link: RJ45 jack, one per video port Fiber link: Duplex LC, one per video port Analog audio: Two 3.5mm stereo jacks Digital audio: S/PDIF RCA, AES mini-XLR, S/PDIF optical TOSLINK Serial: DB9F Power using external adapter: Barrel jack Power using internal power supply: IEC-320 recepacle Receiver: DVI video: DVI female, one per port USB HID keyboard/mouse: Two USB type A jack PS/2 keyboard/mouse: Two PS/2 mini-din6F USB 2.0 device: Four USB Type A CATx link: RJ45 jack, one per video port Fiber link: Duplex LC, one per video port Analog audio: Two 3.5mm stereo jacks Digital audio: S/PDIF RCA, AES mini-XLR, S/PDIF optical TOSLINK Serial: DB9MPower using external adapter: Barrel jack Power using internal power supply: IEC-320 recepacle
Controls	Error status: Green LED per port Link status: Green LED per port USB/video status: RGB LED per port VGA status: RGB LED per port Digital audio status: RGB LED per port USB-HID status:Two orange LEDs per port USB embedded 2.0 status: Three green LEDs per port USB 2.0 status: RGB LED per port
Environment	Operating temperature: 41°F–113°F (5°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing

PART NUMBERS

這里所列并不是完全的型號.
因?yàn)榇水a(chǎn)品有很多種組合.
請參閱數據表以獲得完整描述.
發射器Transmitter
OT2-SLDTXUD1D	Transmitter, DVI-D, USB HID, CATx
OT2-SLDFMUD1D	Transmitter, DVI-D, USB HID, Fiber Multi-mode
OT2-SLDFSUD1D	Transmitter, DVI-D, USB HID, Fiber Single-mode
OT2-SLDTXUD1V	Transmitter, DVI-I (VGA), USB HID, CATx
OT2-SLDFMUD1V	Transmitter, DVI-I (VGA), USB HID, Fiber Multi-mode
OT2-SLDFSUD1V	Transmitter, DVI-I (VGA), USB HID, Fiber Single-mode
OT2-SLDTXTD1D	Transmitter, DVI-D, USB 2.0, CATx
OT2-SLDFMTD1D	Transmitter, DVI-D, USB 2.0, Fiber Multi-mode
OT2-SLDFSTD1D	Transmitter, DVI-D, USB 2.0, Fiber Single-mode
OT4-SLDTXTD1V	Transmitter, DVI-I (VGA), USB HID, USB 2.0, CATx
OT4-SLDFMTD1V	Transmitter, DVI-I (VGA), USB HID, USB 2.0, Fiber Multi-mode
OT4-SLDFSTD1V	Transmitter, DVI-I (VGA), USB HID, USB 2.0, Fiber Single-mode
OT2-SLDTXUD1D/AUD	Transmitter, DVI-D, USB HID, Audio/Serial, CATx
OT2-SLDFMUD1D/AUD	Transmitter, DVI-D, USB HID, Audio/Serial, Fiber Multi-mode
OT2-SLDFSUD1D/AUD	Transmitter, DVI-D, USB HID, Audio/Serial, Fiber Single-mode
OT4-SLDTXUD1V/AUD	Transmitter, DVI-I (VGA), USB HID, Audio/Serial, CATx
OT4-SLDFMUD1V/AUD	Transmitter, DVI-I (VGA), USB HID, Audio/Serial, Fiber Multi-mode
OT4-SLDFSUD1V/AUD	Transmitter, DVI-I (VGA), USB HID, Audio/Serial, Fiber Single-mode
OT4-SLDTXTD1D/AUD	Transmitter, DVI-D, USB 2.0, Audio/Serial, CATx
OT4-SLDFMTD1D/AUD	Transmitter, DVI-D, USB 2.0, Audio/Serial, Fiber Multi-mode
OT4-SLDFSTD1D/AUD	Transmitter, DVI-D, USB 2.0, Audio/Serial, Fiber Single-mode
OT4-SLDTXTD1V/AUD	Transmitter, DVI-I (VGA), USB HID, USB 2.0, Audio/Serial, CATx
OT4-SLDFMTD1V/AUD	Transmitter, DVI-I (VGA), USB HID, USB 2.0, Audio/Serial, Fiber Multi-mode
OT4-SLDFSTD1V/AUD	Transmitter, DVI-I (VGA), USB HID, USB 2.0, Audio/Serial, Fiber Single-mode
接收器Receivers
OR2-SRDTXUD1D	Receiver, DVI-D, USB HID, CATx
OR2-SRDFMUD1D	Receiver, DVI-D, USB HID, Fiber Multi-mode
OR2-SRDFSUD1D	Receiver, DVI-D, USB HID, Fiber Single-mode
OR2-SRDTXTD1D	Receiver, DVI-D, USB HID, USB 2.0, CATx
OR2-SRDFMTD1D	Receiver, DVI-D, USB HID, USB 2.0, Fiber Multi-mode
OR2-SRDFSTD1D	Receiver, DVI-D, USB HID, USB 2.0, Fiber Single-mode
OR2-SRDTXUD1D/AUD	Receiver, DVI-D, USB HID, Audio/Serial, CATx
OR2-SRDFMUD1D/AUD	Receiver, DVI-D, USB HID, Audio/Serial, Fiber Multi-mode
OR2-SRDFSUD1D/AUD	Receiver, DVI-D, USB HID, Audio/Serial, Fiber Single-mode
OR4-SRDTXTD1D/AUD	Receiver, DVI-D, USB HID, USB 2.0, Audio/Serial, CATx
OR4-SRDFMTD1D/AUD	Receiver, DVI-D, USB HID, USB 2.0, Audio/Serial, Fiber Multi-mode
OR4-SRDFSTD1D/AUD	Receiver, DVI-D, USB HID, USB 2.0, Audio/Serial, Fiber Single-mode
