CrystalView Exact 通過一根 Cat6a/7 電纜將 Ultra HD DisplayPort 1.2a 視頻以及 USB 3.1、2.0 和 1.1 擴展至 330 英尺（100 米）。還可以傳輸嵌入在 DisplayPort、以太網直通和雙向 RS232 中的雙通道音頻。

該點對點擴展系統由兩部分組成，一個位于主機附近的發射器擴展器單元和一個靠近顯示器和 USB 外圍設備的遠程接收器擴展器單元。所有信號都通過一根 CAT6a/7 電纜在發射器和接收器單元之間聚合和傳輸。需要最低等級的 6a 類電纜。

圖像質量卓越，DisplayPort 1.2a 提供視覺無損的 4K60 視頻分辨率，YCbCr 4:4:4 和高達每通道 10 位的色彩支持。接收器單元包括四個 USB 端口，每個端口提供 1.2A (6W) 的功率。以全帶寬同時直接連接 USB 設備或連接自供電 USB 集線器以將 USB 端口數擴展至 30 個。以太網直通通道允許遠程連接支持網絡的設備。 RS232 通道可用于啟用 RS232 的設備或用于命令和控制應用。

CrystalView Exact 擴展系統安裝簡單，即插即用，兼容所有主要計算機操作系統。不需要軟件驅動程序。

CrystalView Exact 是一款工業級產品，采用鋁制外殼和鎖定電源連接器。常見應用包括工業控制/HMI、視頻制作、ProAV、醫學成像、會議室和交互式數字標牌。

PART NUMBERS

CRK-1DTXU321DP	CrystalView Exact KVM Extender Set
CRV-SLDTXU321DP	CrystalView Exact KVM Transmitter Unit
CRV-SRDTXU321DP	CrystalView Exact KVM Receiver Unit
RM-UD/CLK321	"L" bracket kit for shelf, wall, or under desk (Not for 19" rack)

Dimensions (W x D x H)	9.1" x 5.4" x 1.3" (232 x 137 x 33 mm)
Weight	Transmitter: 2.03 lb (920g) Receiver: 2.18 lb (990g) Packaged: (Extender set with power adapters): 6.5 lb. (2.95kg)
Power	Transmitter Power Adapter: Input: 100-240VAC, 50/60Hz; Output: 24VDC, 1A Receiver Power Adapter: Input: 100-240VAC, 50/60Hz; Output: 24VDC, 2.71A
Resolution	Max Resolution: 3840x2160 @ 60Hz Color: YCbCr 4:4:4 and RGB color (6, 8, 10 bit) support
Audio	Two channel DisplayPort audio
USB	USB Device Support: USB 3.1 Gen 1, USB 2.0, USB 1.1 USB Speeds: SuperSpeed 5Gbps, high-speed, full-speed, low-speed USB Bandwidth: Up to 5Gbps USB Host Compatibility: xHCI (USB 3.1), EHCI (USB 2.0), and OHCI/UHCI (USB 1.1) USB Host Support: Up to three self-powered USB hubs Maximum USB Devices: 30 Current per USB Device: Up to 1.2 Amp (6W)
OS Compatiblity	Windows®, Mac OS X, Linux®, ChromeOS
Distance	Cable Category: CAT6a/CAT7 solid core, UTP, STP, or FTP, depending on installation environment Cable Termination: RJ45, using TIA/EIA T568A or T568B Maximum Length: 330 feet (100m) (Use of patch cable may reduce the maximum length)

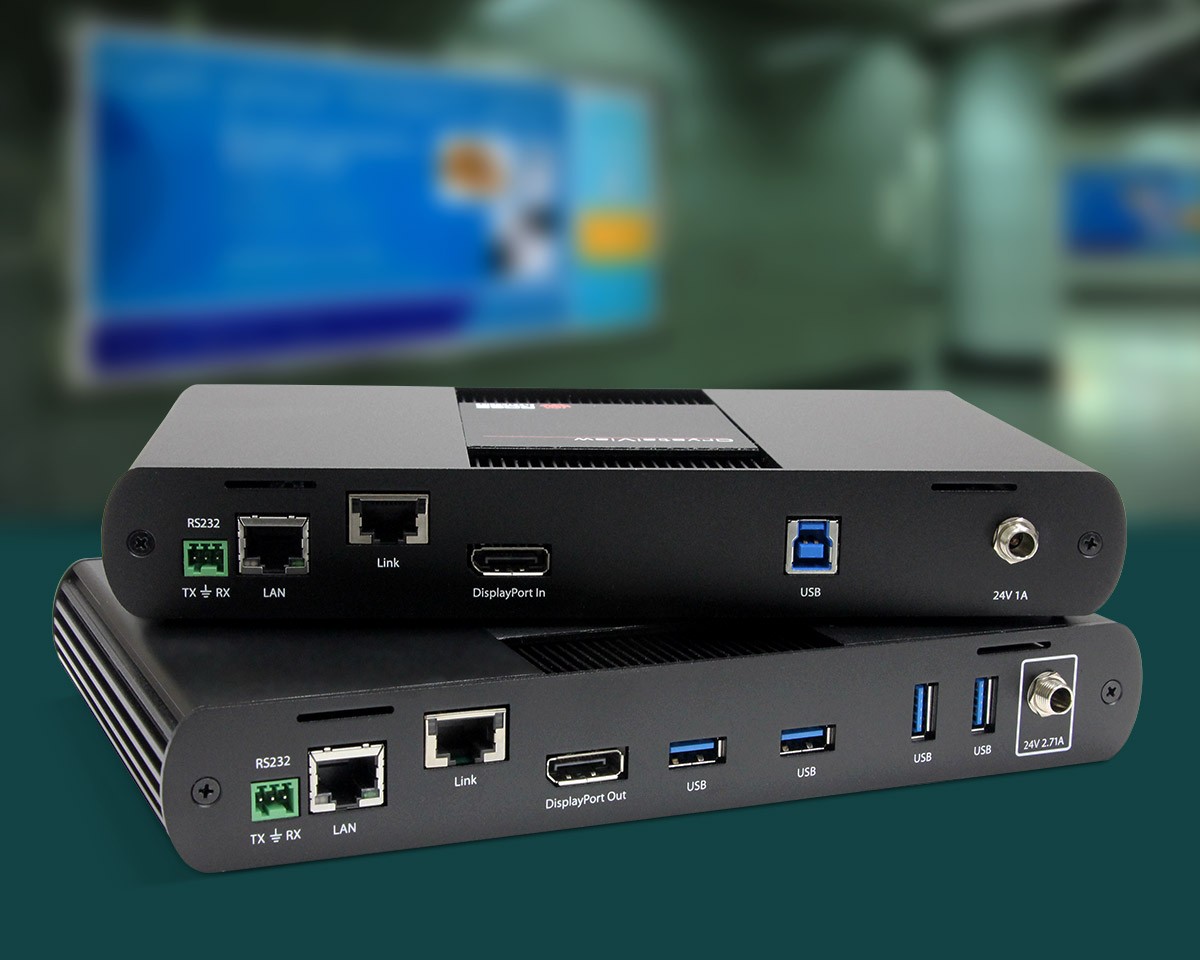

Connectors	Transmitter: 1 x DisplayPort 1.2a connector 1 x USB 3.1 Gen 1 Type B 1 x RJ45 link port 1 x RJ45 100/1000 Ethernet port 1 x 3-pin terminal block for RS-232 1 x locking power jack Receiver: 1 x DisplayPort 1.2a connector 4 x USB 3.1 Type A female 1 x RJ45 link port 1 x RJ45 100/1000 Ethernet port 1 x 3-pin terminal block for RS-232 1 x locking power jack
Controls	LED indicators: Power, Status, Link, Video, USB 2, USB 3
Environment	Operating temperature: 32°F–104°F (0°C–40°C) Storage temperature: -4°F–140°F (-20°C–70°C) Relative humidity: 20%–80%, non-condensing
